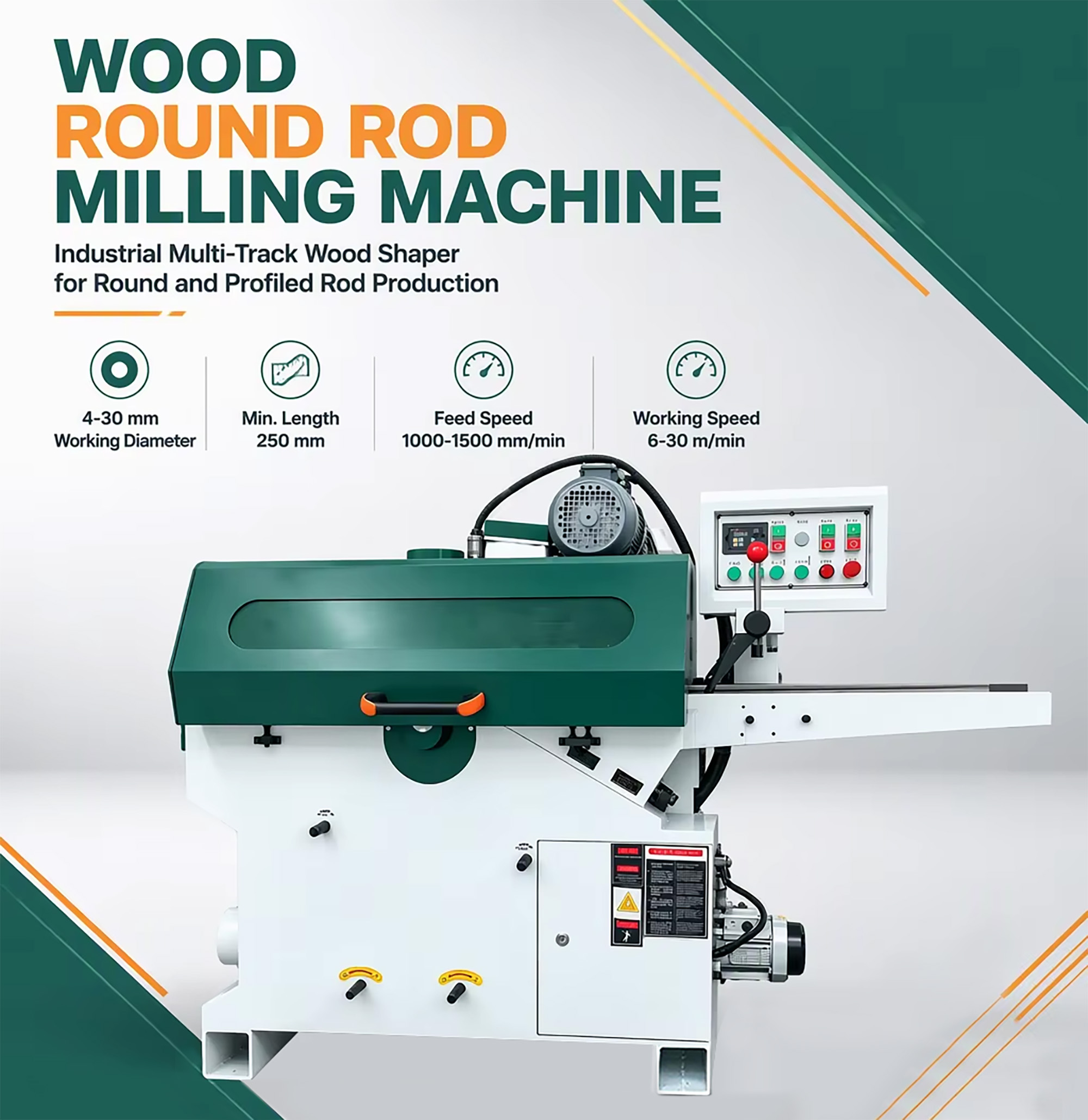

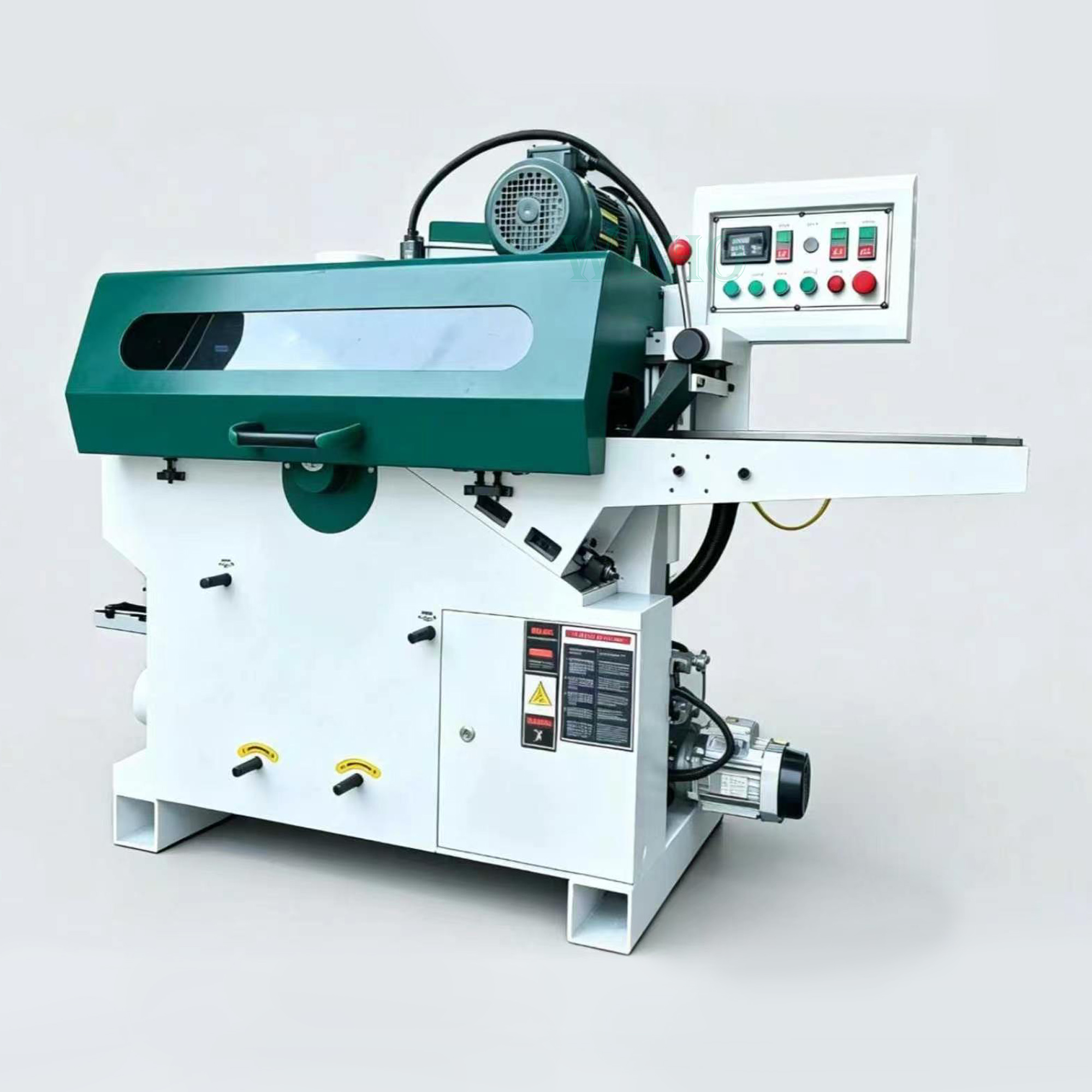

آلة النجارة ذات القطب الدائري تصنع الممسحة ومقبض مكنسة الخشب | آلة التعامل مع المكنسة
Model:MB9010T
Working length:250-6000mm
Working width:6-30mm
Main tool Dia:Φ100mm
Power:8.1kw
Working length:250-6000mm
Working width:6-30mm
Main tool Dia:Φ100mm
Power:8.1kw
Details
Spare Parts
Inquiry
The round bar machine can be used in a wide range of applications.This set of equipment is mainly used for shovel, hoe, and round bar. wood dowels cutter with automatic feeding is safe and high efficient.Daily use of mops and tooling in the production of workers and peasants, as well as the decoration of circular wood for furniture.
نموذج | MB9010T |
طول العمل | 250-6000 مم |
قطع المواد الزائدة عن المخزون الدوتاري | 1 |
المواد الخام للوحة | 1-6 |

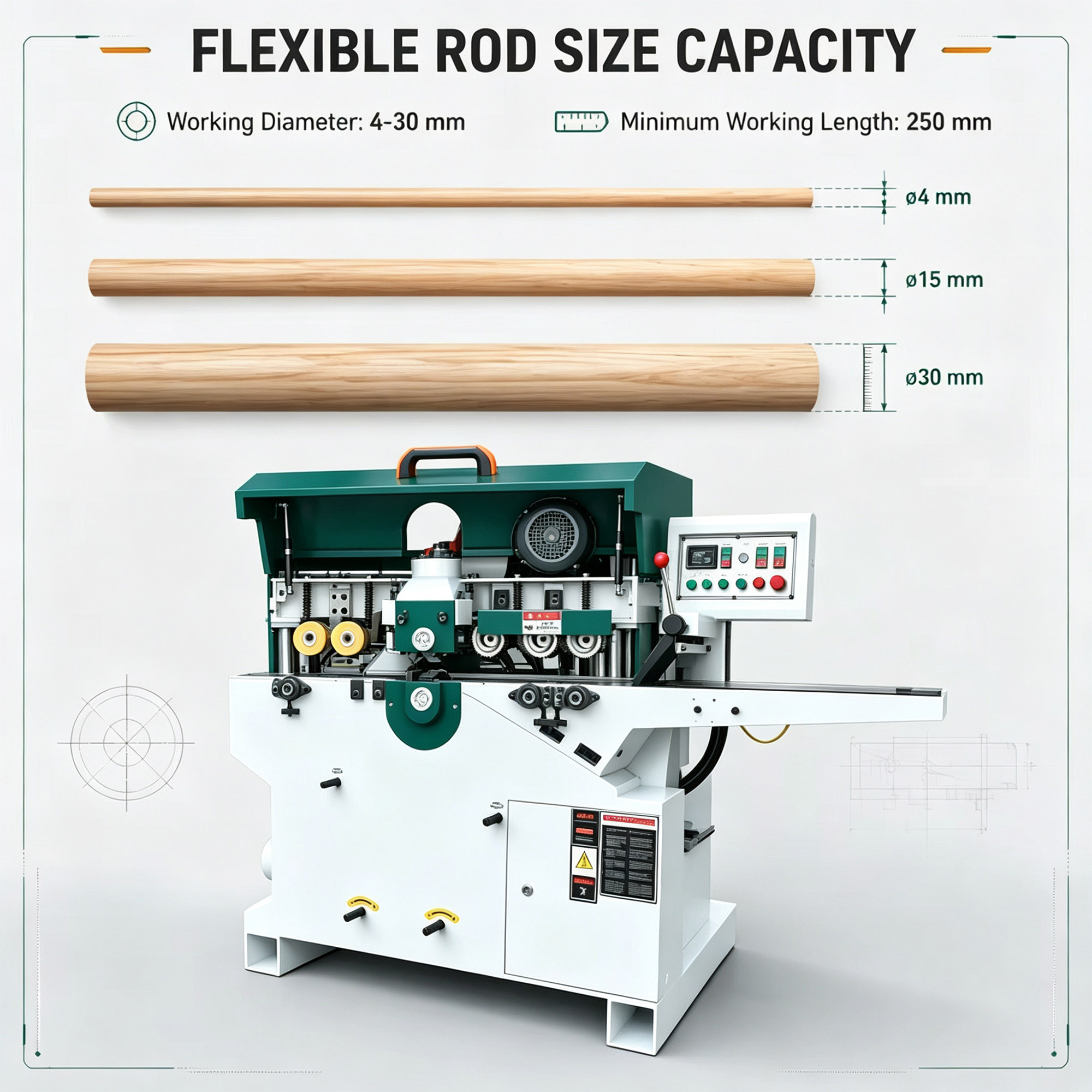

قطر العمل | 6-30 ملم |
تغذية قوة المحرك | 1.1 كيلو واط |
سرعة التغذية | 6-30 م / دقيقة |
1st قوة محرك المحور | 3 كيلو واط |
2nd محور قوة المحرك | 4 كيلو واط |
أقصى قطر للأداة | φ100 مم |
أداة سرعة المغزل | 8500r / دقيقة |
حجم مخرج الاستخراج | φ160 ملم |
قطر المغزل | φ30 ملم |
إجمالي الطاقة | 8.1 كيلو واط |
البعد | 1200 * 800 * 1300 مم |

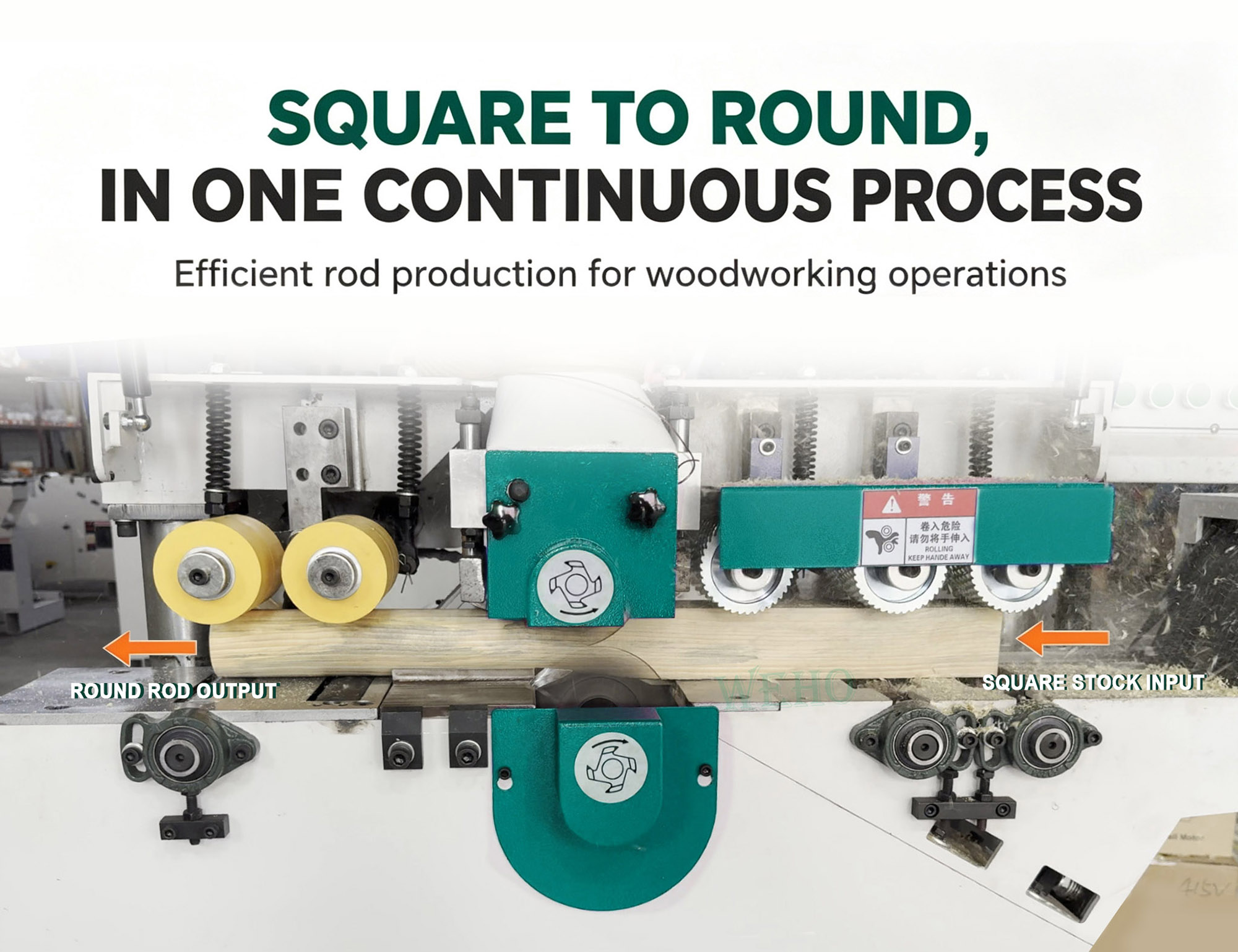

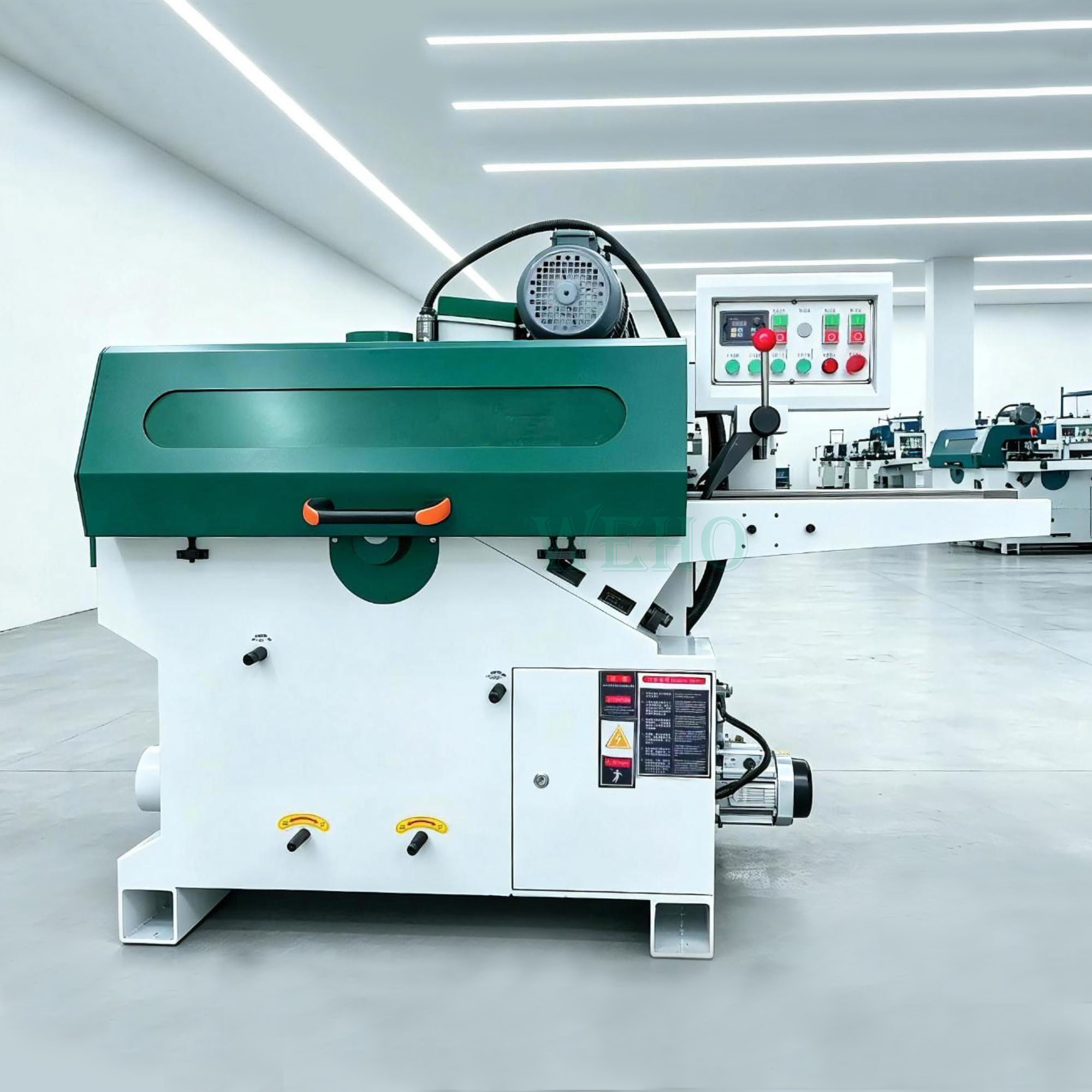

The machine is mainly used for turning wooden sticks, which use double side planer to makes the round rods many pieces one time passing.
Work table
The work table surface was precision ground and then electro chrome plated and polished to a smooth mirror finish. Durable wear resistance surface is easy to clean and maintain.

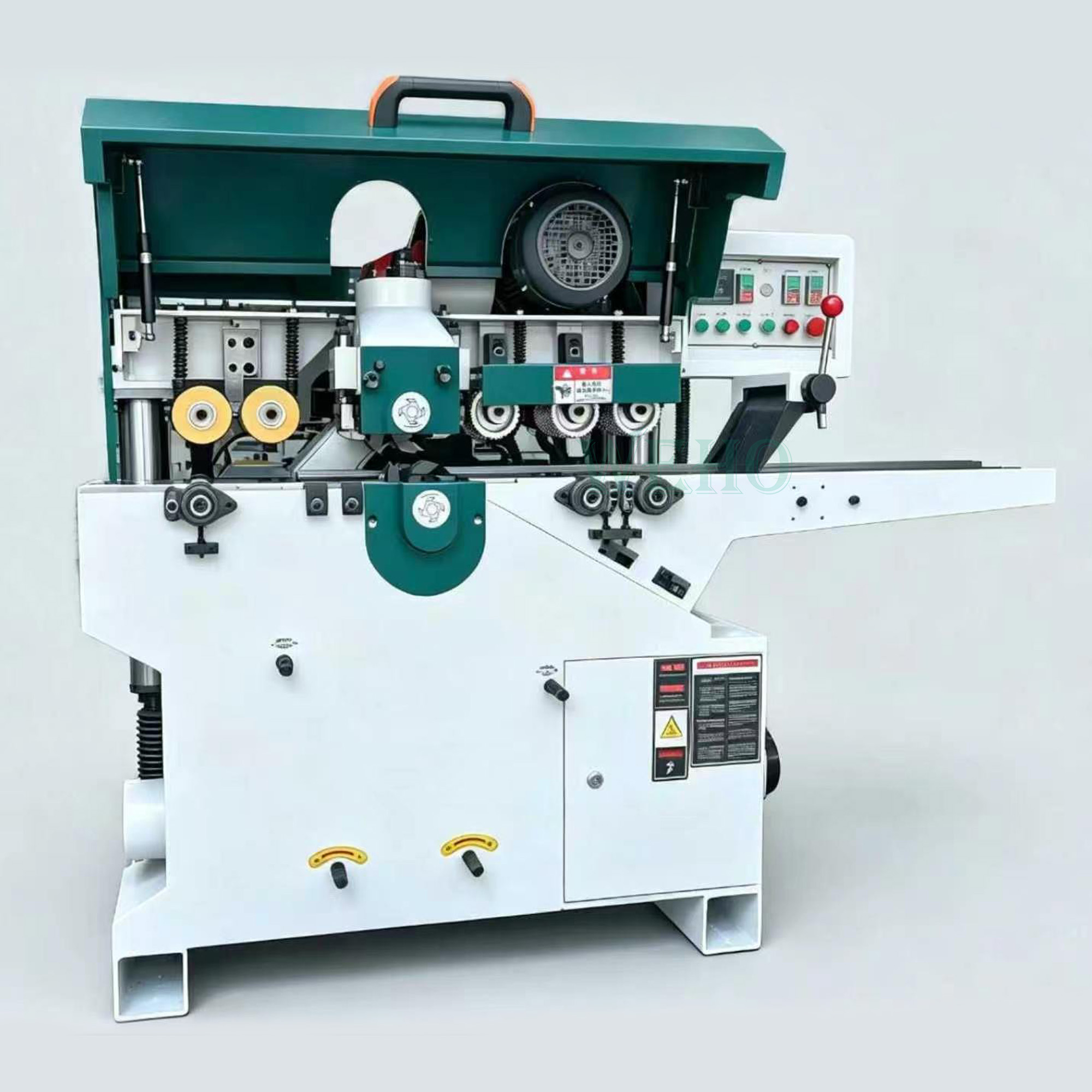

Cutting tools
The round rod machine can be used to make shaper on top and bottom side as double sides moulder. The raw materials can be square or round, and other types of round bars can be customized.(Processing 4-150mm diameter range.)The finished round rods with tapered ta[ers are esaier to insatll on tools such sa shovel and hoe.

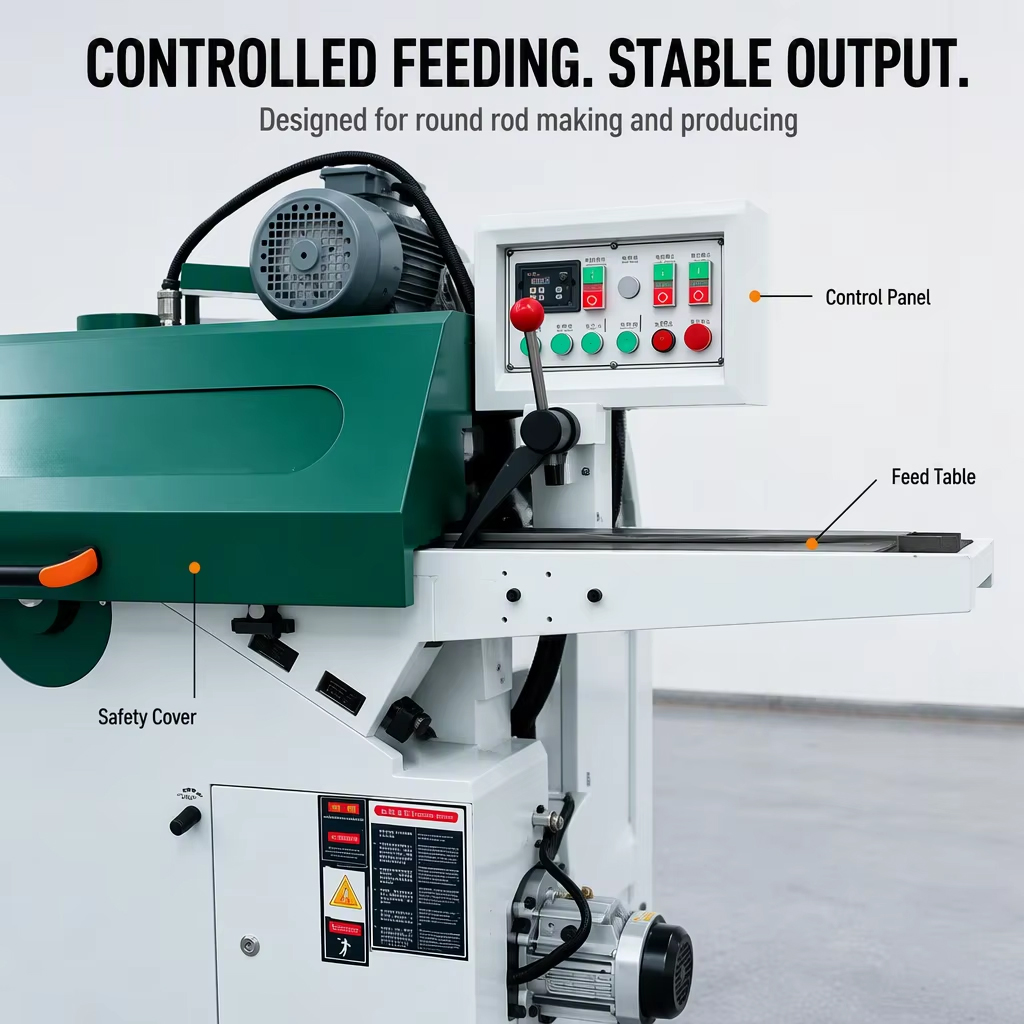

Electrical box and Control panel
The wood dowels cutter with automatic feeding is safe and high efficient.
The round bar machine can be used for processing wooden uneven bars, martial arts bars and other sports equipment, rolling pin, mine pillars, stair railings and other round sticks.
